Litho DK30

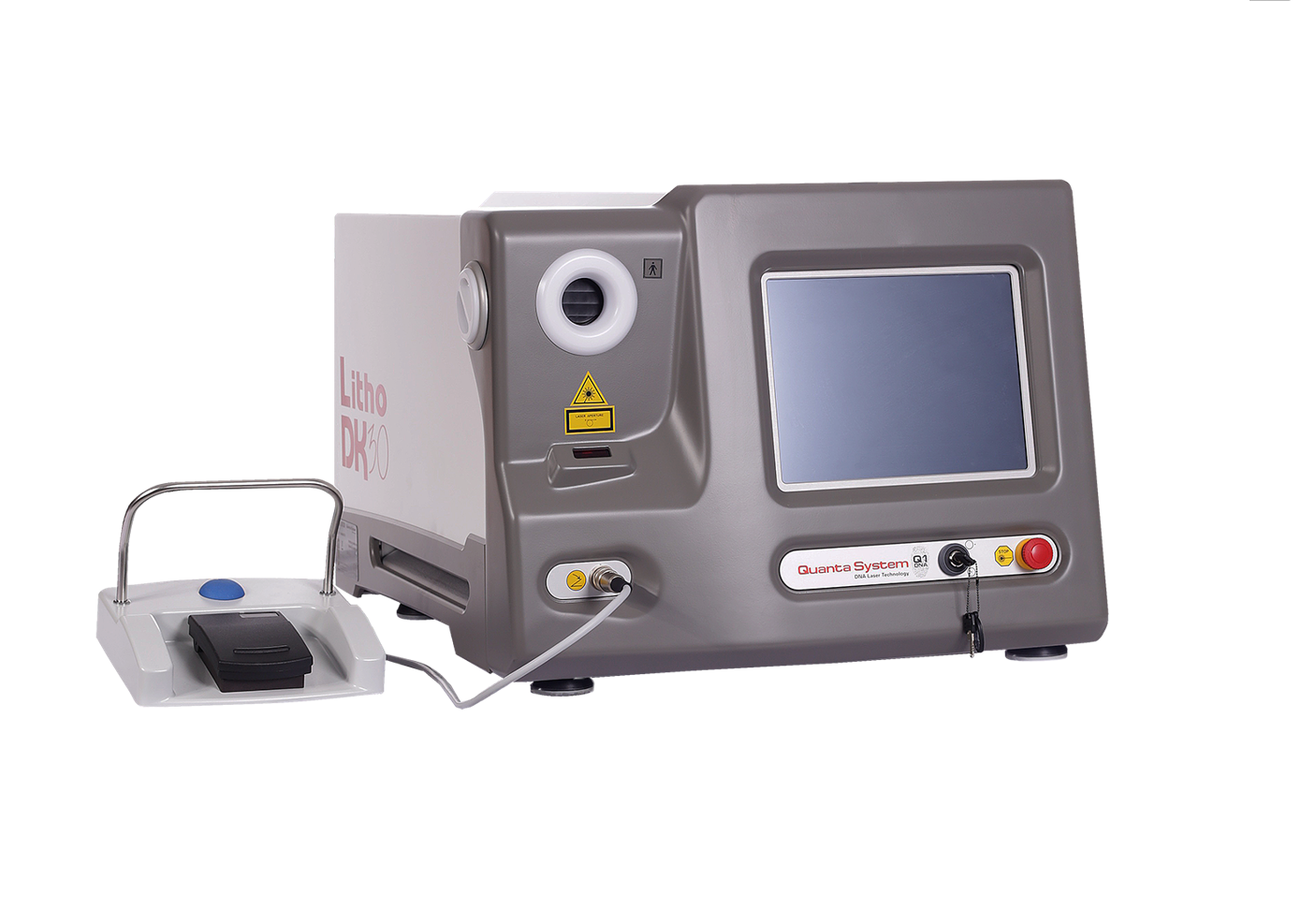

State-of-the-art desktop 30W Holmium:Yag Laser

Litho DK30

Quanta System, thanks to the latest technology innovations, has collected in an extremely compact desktop system, the excellence of the Holmium:YAG - 30 W Laser.

The Litho DK30 can deliver up to 4 J per pulse, it has a repetition rate up to 25 Hz and offers the possibility to regulate the pulse to fit the desired clinical effect (ex. Dusting Effect).

Litho DK30 is a contemporary desktop Holmium unit equipped with a series of technological solutions designed for surgery.


  • Lithotripsy
  • Excision of bladder tumors
  • Ureterotomy, Urethrotomy
  • Transurethral incision of prostate (TUIP)
  • General Surgery


Quanta System introduces a new application setting: the Lithotripsy DUSTING EFFECT. This preset Application is inside the main application menu, beside Lithotripsy HARD STONE, Ablation and Coagulation.

The setting is intended for calculi, especially the renal ones, where the dusting effect lithotripsy technique could eliminate the need for basket extraction and that way reducing the total time of the procedure.

Due to the extended pulse properties, the specific settings of repetition rate and pulse energies, characteristic for dusting lithotripsy, assure more stable position of stone.


  • up to 4 J Energy per Pulse
  • up to 25 Hz - Repetition Rate
  • 95-1500 Us - Pulse Duration

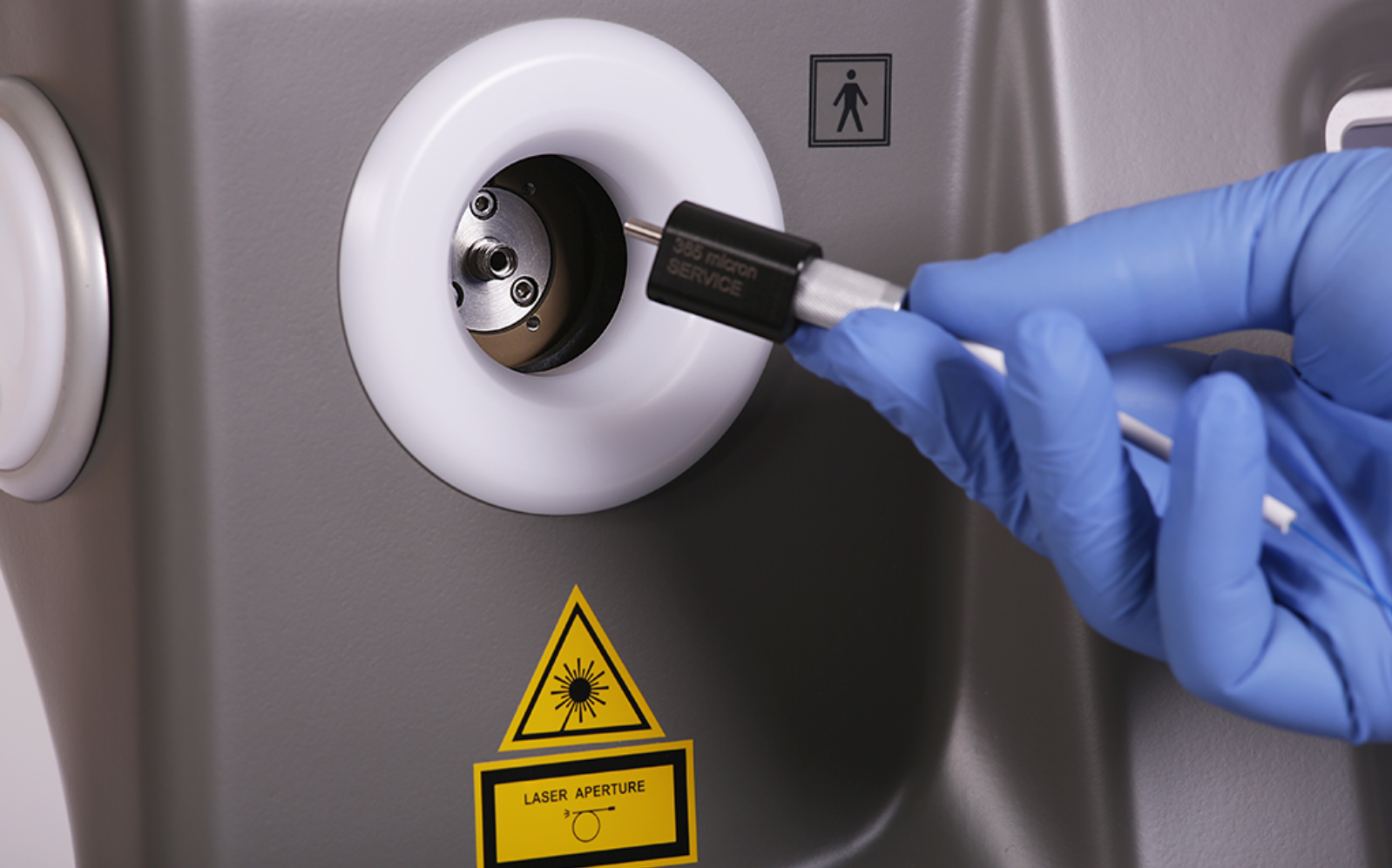

  • RFID Fiber Recognition System
  • Touch Screen 10.4"
  • Double Footswitch

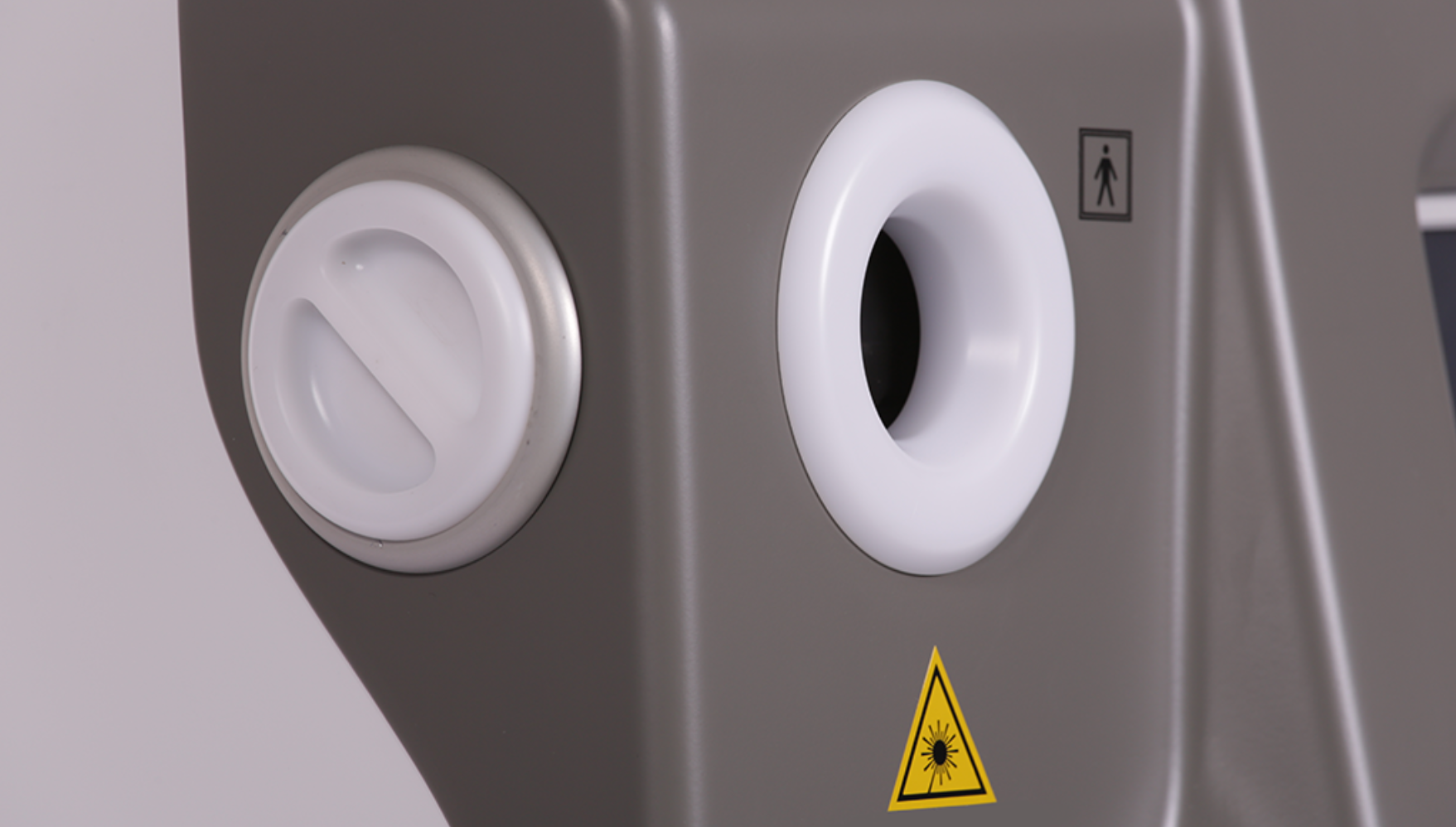

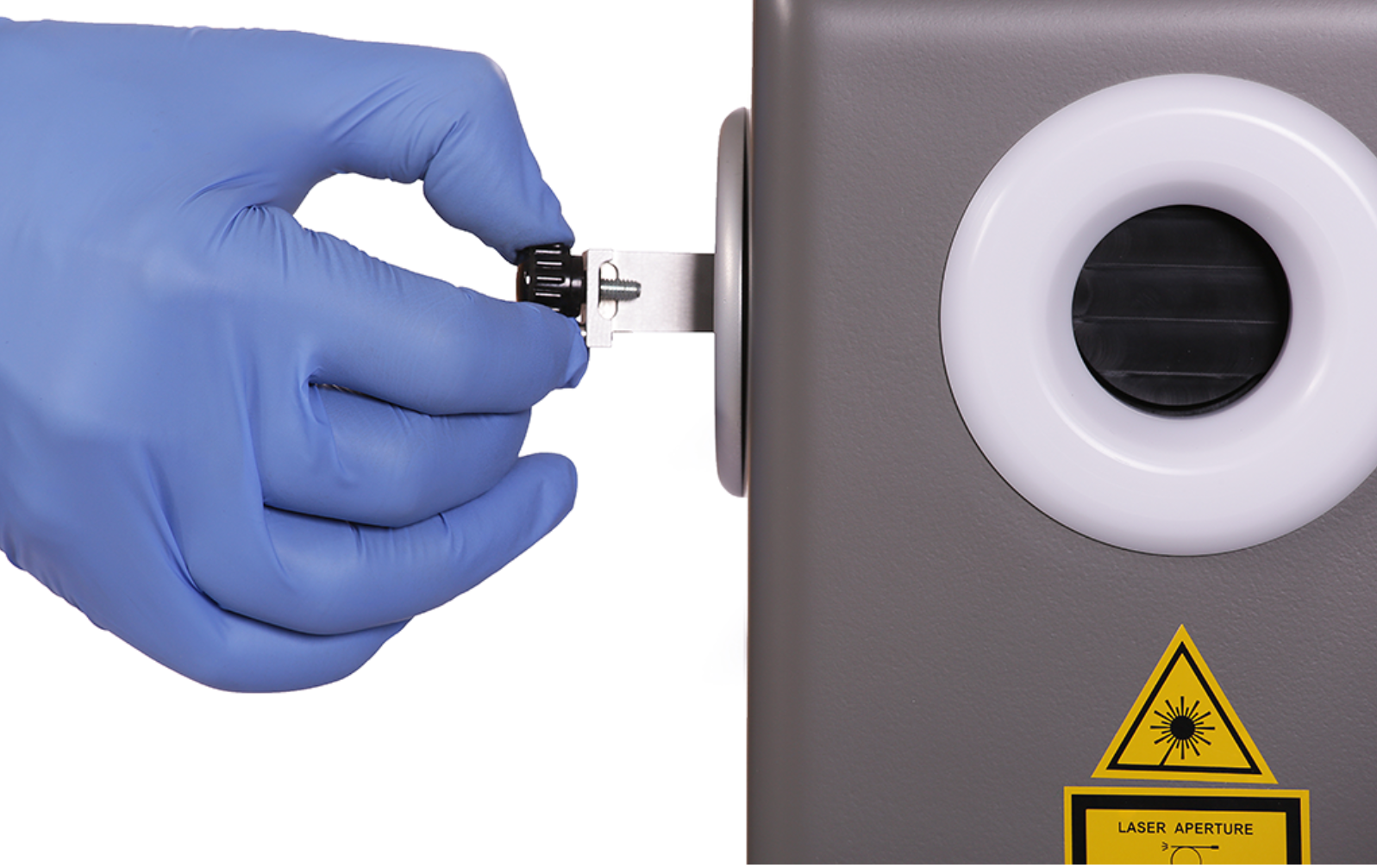

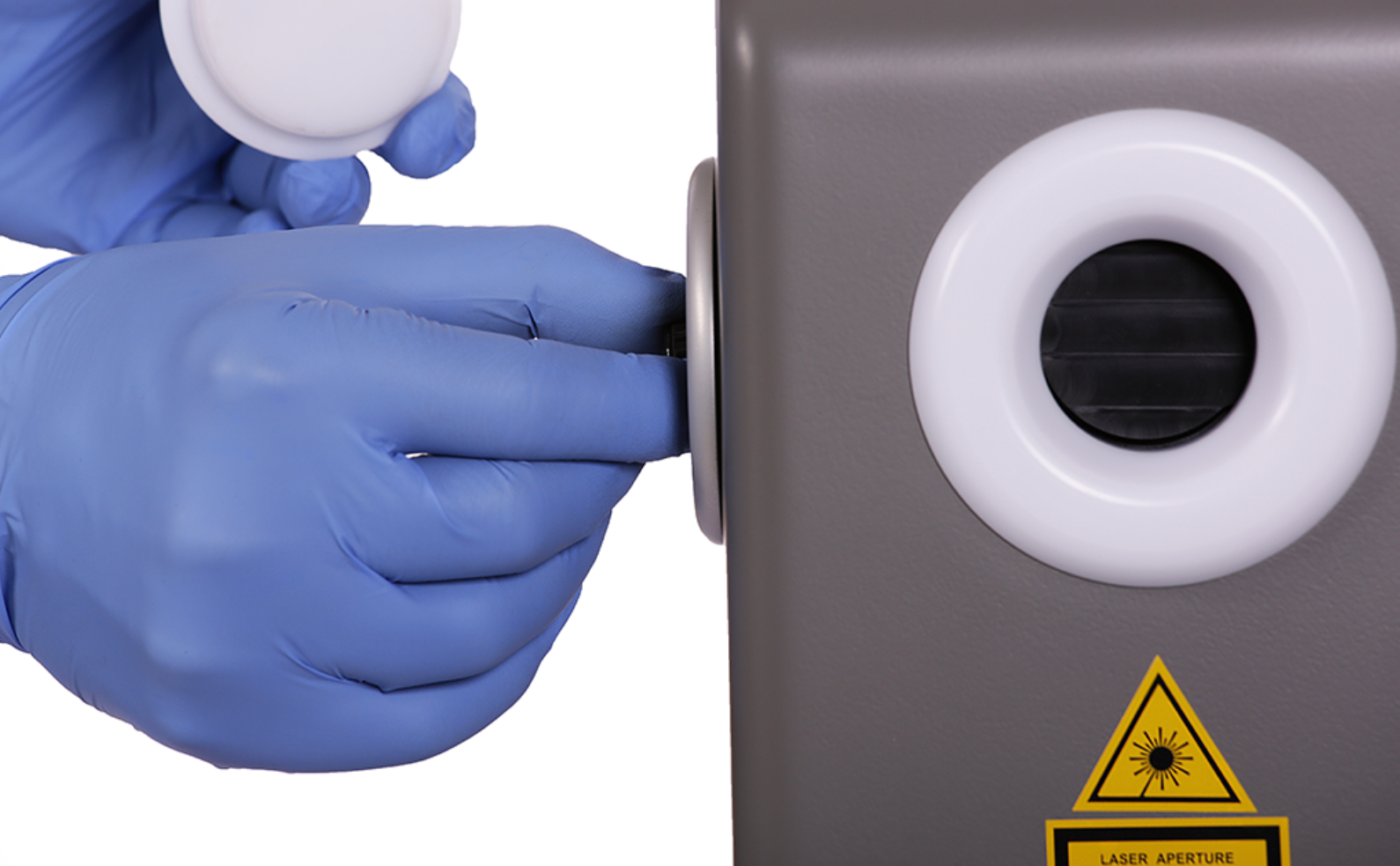

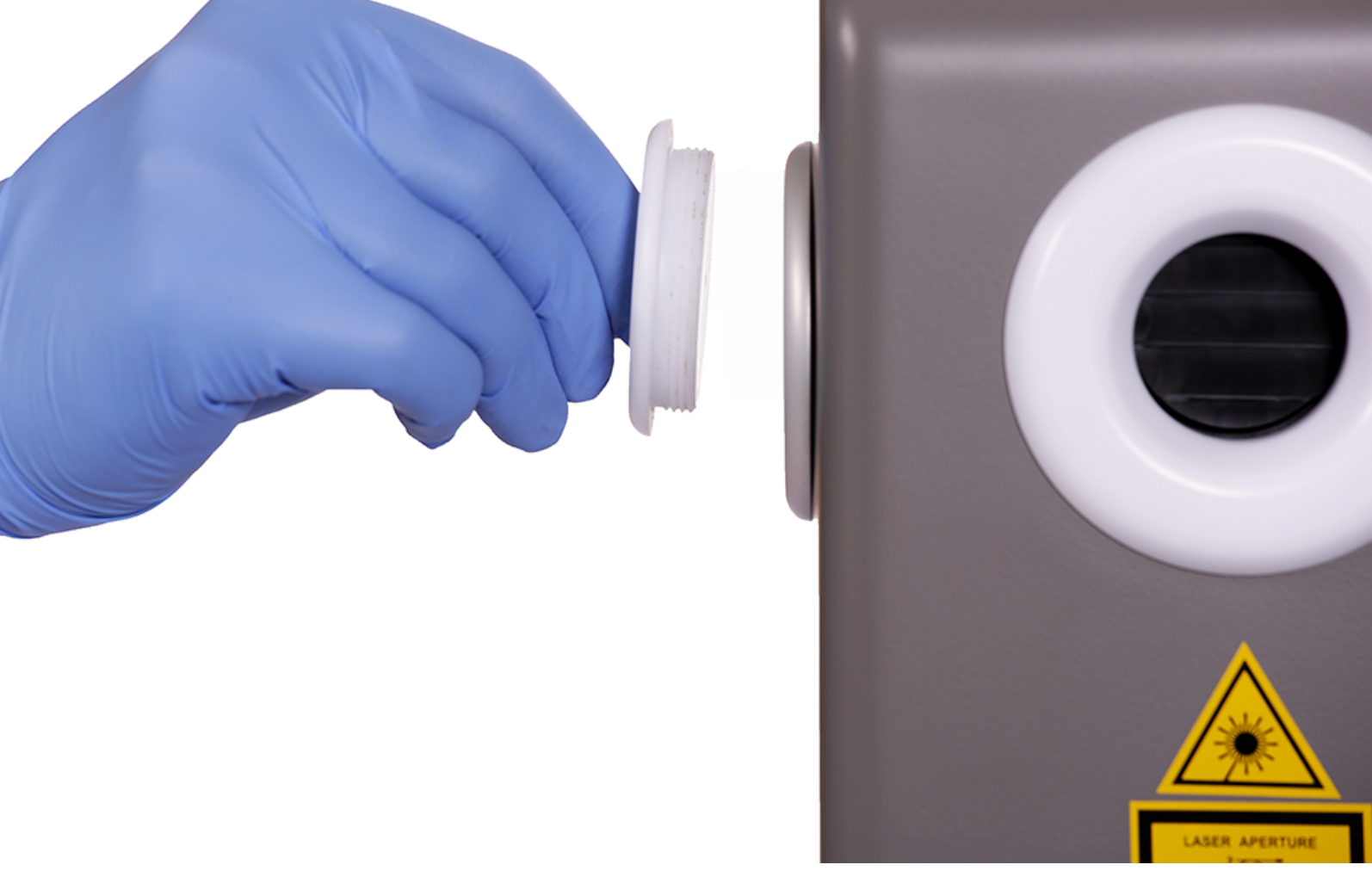

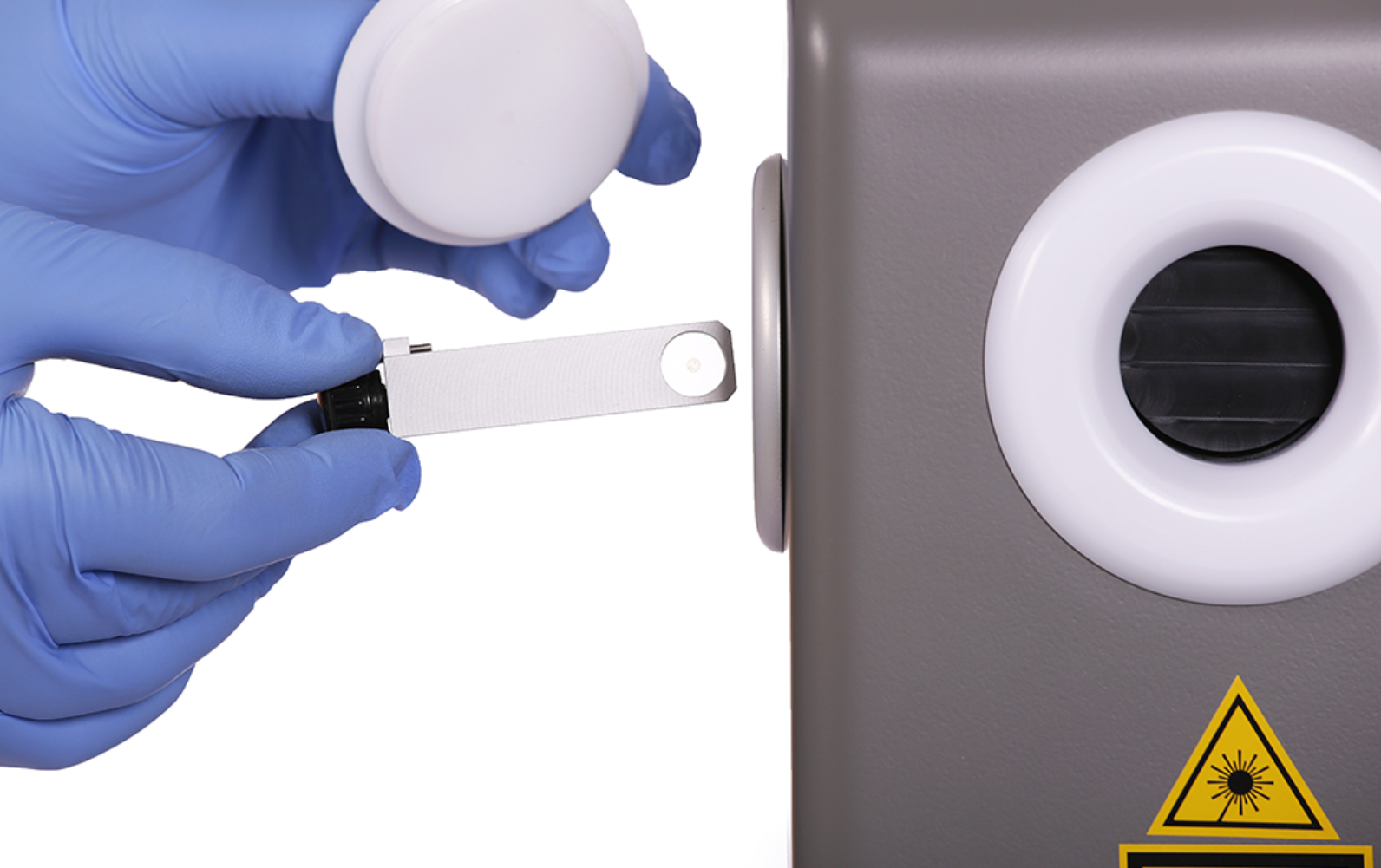

  • Blast Shield Smart Access
  • Frontal Footswitch Connection


  • Ablation
  • Coagulation
  • Lithotripsy - Dusting Effect
  • Lithotripsy - Hard Stone
